Engineering Challenge

We were tasked with redesigning the structure to accommodate a new podium level for an existing building (G+2P+3+Roof), with the requirement to minimize site operations and avoid disrupting the existing ground floor fit-out. Analysis was carried out to assess the adequacy of the current structural system and to propose a suitable strengthening strategy for the foundation and superstructure, while complying with Dubai Building Code (DBC) requirements.

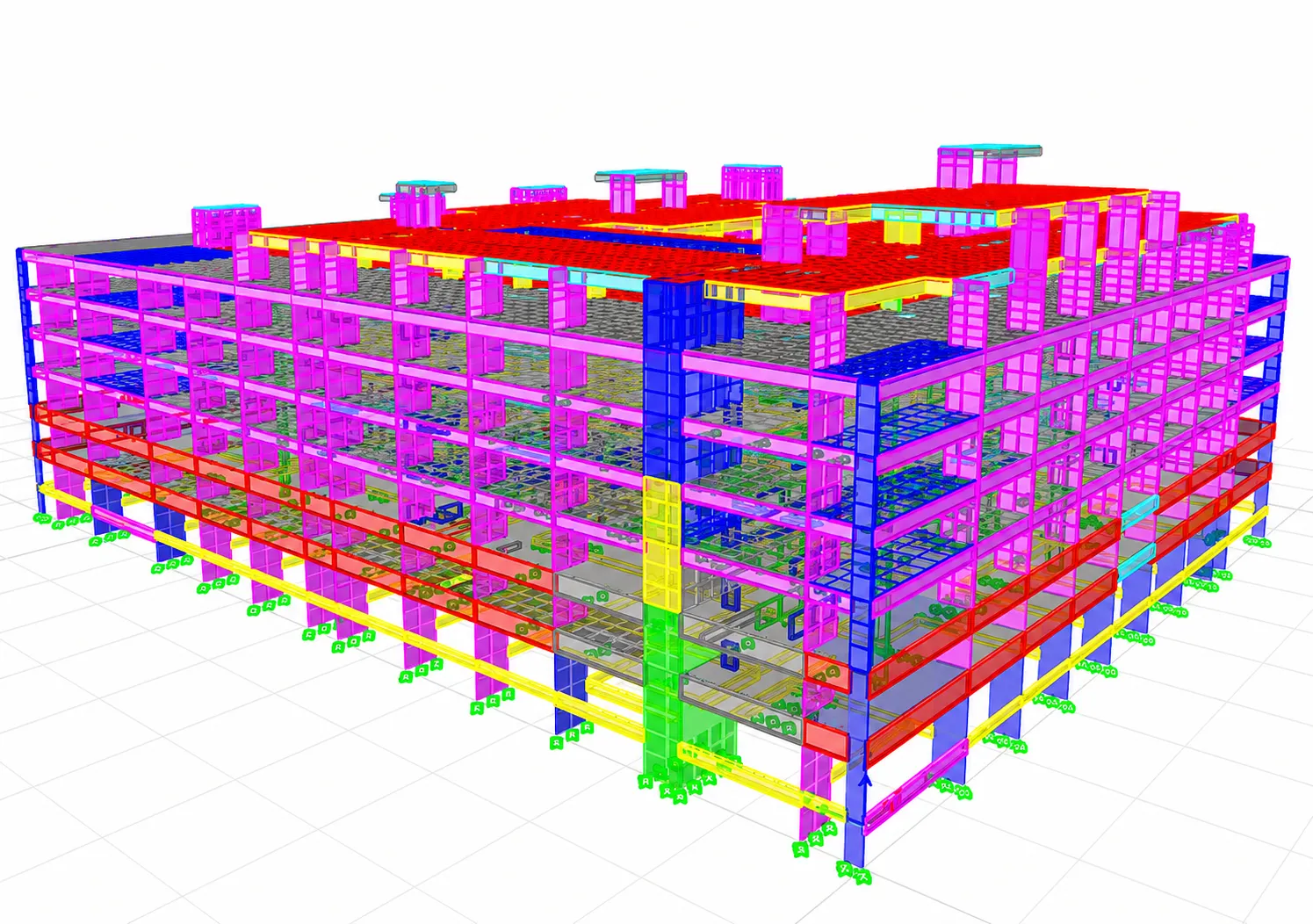

Al Boraq detailed structural BIM model - Moduline Engineering Consultancy

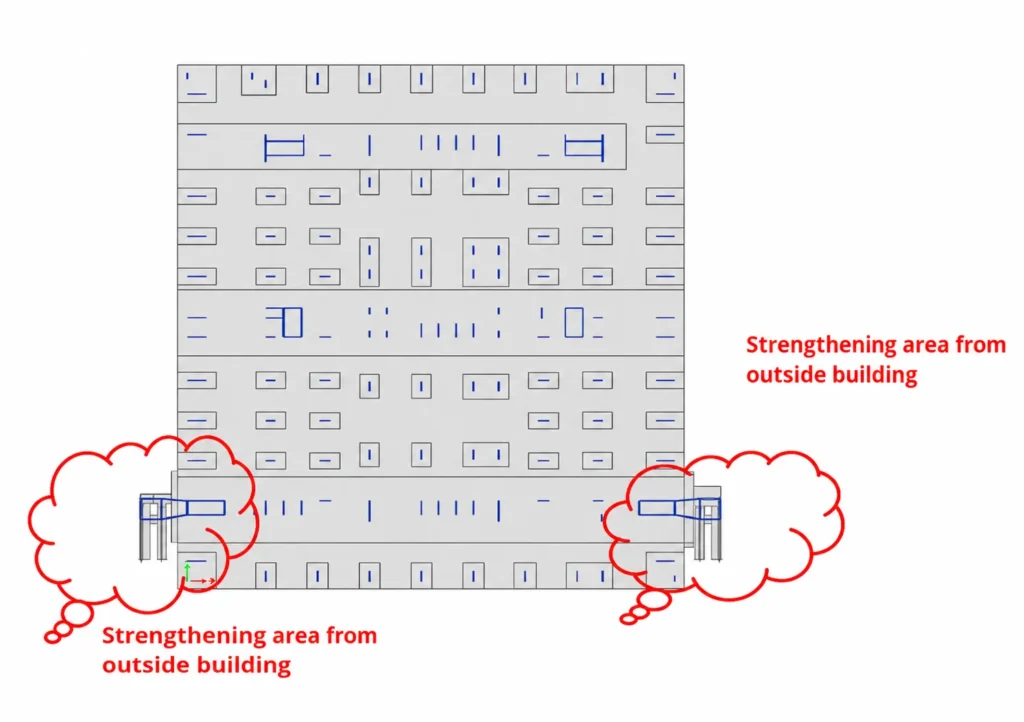

Engineering Solution

The strengthening strategy is based on establishing structural connections between the building’s raft foundation and the ramp foundations using strip footings and strap beams. This approach aims to:

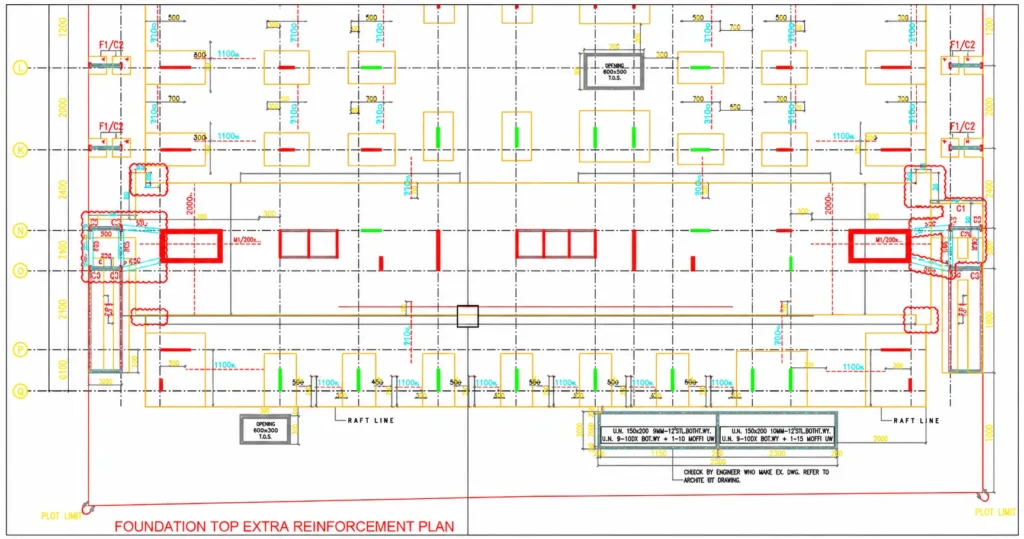

Moduline Engineering Solution

Redistribute stresses across both foundation systems
Reduce soil-raft interaction due to uplift loads
Minimize the required top reinforcement in the raft foundation, enhancing both structural efficiency and material economy.
